Modular bathrooms for interiors – the design process

How a Eurocomponents Modular Bathroom Pod Takes Shape

type of structure

Monolite concrete

Suitable for traditional building techniques and projects where strength is a priority and building floor screeds can support the weight.

PRODUCTION PHASES

Preparation of the mould
Layout of supply water and drainage pipes
Concrete pouring phase using the MONOBUILD construction system
Assembly of floor and walls
Tiling and mounting of interior equipment

Specifications

REINFORCED CONCRETE Reinforced concrete pod, specific weight between 2.300 and 2.500 kg/m³
REINFORCED LIGHTWEIGHT CONCRETE Possibility to produce lightweight concrete of approx. 1.600 kg/m³

type of structure

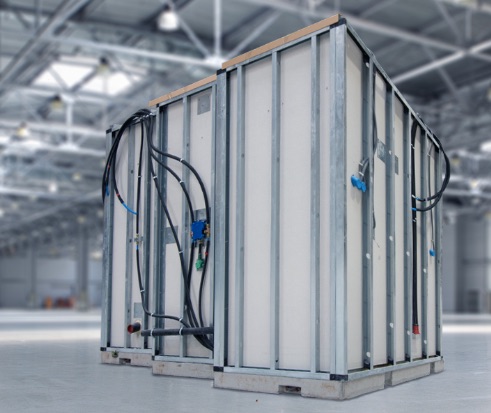

Monolite smart

Suitable for dry construction, with lighter slabs and environmentally-conscious building sites.

PRODUCTION PHASES

Galvanised metal frame structure
Gypsym fibre boards
Concrete floor base with possibility to use the DRYSTEP construction system
Electrical installations
Supply water and drainage pipes
Tiling and mounting of interior equipment

Specifications

Galvanised metal frame structure
Lighter formula for buildings where weight optimisation is a priority.

Eurocomponents Methods

A strong motivation to simplify life on building sites led us to develop smart construction methods. Our research and development team found a way to make the modular structures safer and more durable by developing two innovative construction methods:

MONOBUILD

Monolite Concrete production method guaranteeing maximum robustness thanks to continuity of the electrically-welded reinforcement mesh inside the module structure.

DRYSTEP

Monolite Smart production method which prevents water leakage and protects the metal structure against rust while maintaining the robustness of the structure.

Design step by step

Virtual 3D Design

A competent and experienced technical team takes charge of design and 3D rendering before we begin building the modular pods.

Mock-up Bathroom

Upon approved design drawings we produce a "sample bathroom" for your inspection and approval

Production

Upon approval of the mock-up bathroom the serial production can start. The pods are produced using an assembly line production process combined with unique artisan chaftsmanship to achieve the most demanding architectural details.

Transport and Installation On Site.

We deliver the concrete or galvanised metal pods complete with all installations, sanitary ware, tiles and furnishing accessories. Lifting hooks fitted inside the structure facilitates transportation, handling and installation of the modular pods. Once on site, there are two different installation methods: lowering the pods from above using a crane or fitting them sideways using trolleys.

Outstanding Industrial Design

No-one Believes They Are Mass-produced.
